Trolley with lifting hook and rubber wheels assembled with Diesel engine and self-priming centrifugal pump Type Victor Pumps S 80 (Q max: 90 m³/h; H max: 30 m) with following features:
→ Hatz Diesel engine
→ Close-coupled
→ Stage V (EU)
→ Manual start
→ PinoPumps standard stainless steel name plate with product name and serial number
TA3 D S080 - 1380 005
1380 005
REGISTER TO BUY
Please register to see prices and delivery times
Trolley with lifting hook and rubber wheels assembled with Diesel engine and self-priming centrifugal pump Type Victor Pumps S 80 (Q max: 90 m³/h; H max: 30 m) with following features:
→ Hatz Diesel engine
→ Close-coupled
→ Stage V (EU)
→ Manual start
→ PinoPumps standard stainless steel name plate with product name and serial number
1380 005
Specifications
Main Features |
|
|---|---|
| Pump Flow Rate | max 90 m³/h (1500 l/min) |
| Pump head | max 30 m |
| Max. Solids Handling | 32 mm |
| Self-priming | ★★★☆☆ |
| Heavy-duty | ★★★☆☆ |
| Frame | Single-axle Trailer |
| Suitable for the EU sales area | Yes |
| Suitable for the US sales area | No |
| Suitable for non regulated sales areas | Yes |
Frame |
|
|---|---|
| Type of Tyre | Solid rubber wheels with tractor profile |
| Suitable for solid ground | Yes |
| Suitable for muddy and sandy terrains | Yes |
| Lifting hook | Yes |
| Can be moved by hand | Yes |
| Can be towed with a vehicle | No |
| Towing bar with hook | No |
| Document box prepared for lock | No |
| Tool box prepared for lock | No |
| Tank on engine | Yes |
| Tank integrated in frame | No |
| Tank Capacity | 5 l |
Pump |
|
|---|---|
| Type of Pump | Self-priming centrifugal pump |
| Pump manufacturer | Victor Pumps |
| Suction port | 2'' |
| Discharge port | 2'' |
| Type of ports | Female Thread BSP |
| Type of self-priming | Wet-prime |
| Vaccum pump | No |
| Inspection cover for the impeller | Yes |
| Filling port | Yes |
| Drain Port | Yes |
| Plug for Vacumeter | Option |
| Plug for the Manometer | Option |
| Material of casing | Cast iron |
| Material of impeller | Cast iron |
| Material of wear plate | Steel |
| Material of shaft | Stainless steel AISI316 |
| Material of non-return valve | NBR (Nitrile) |
| Shaft sealing | YCV Mechanical Seal with Grease Lubrication in SiC/SiC/FKM(Viton®) on Stainless Steel Sleeve AISI316 |
Drive |
|
|---|---|
| Type of drive unit | Diesel |
| Drive Manufacturer | Hatz |
| Drive code | 1B40 |
| Exhaust gas regulation | Stage V |
| Manual Start | Yes |
| Electric start | No |
| No. of Cylinder | 1 |
| Strokes | 4-stroke |
| Displacement | 462 cm³ |
| Rated Power | 7, 5 kW (10 HP) |
| Maximal Rotation | 3600 rpm |
| Cooling | Air cooled |
Performance data |
|
|---|---|
| Max vacuum with water | max 8 m (9, 5 m for 10 min) |
| Max vacuum with air | max 7, 5 m |
Additional Features |
|
|---|---|
| Paint | RAL1006 maize yellow |

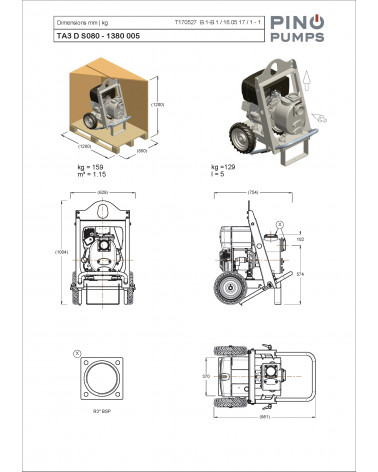

| External Dimensions (L x W x H) | see dimensions |
| Net Weight | see dimensions |
