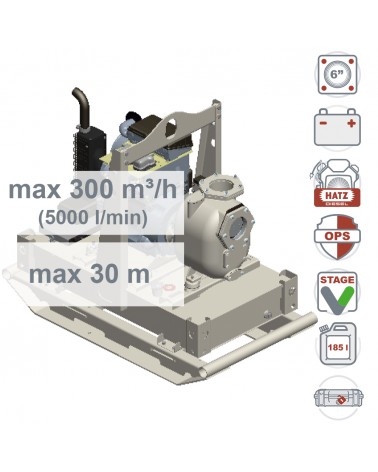

Skid with tankframe and lifting hook assembled with Diesel engine and self-priming centrifugal pump Type Victor Pumps S150 (Q max: 300 m³/h; H max: 30 m) with following features:
→ Hatz Diesel engine
→ Close-coupled
→ Stage V (EU)
→ OPS (Pino Pumps overload-protection-system)
→ Electric start
→ Battery 80 Ah
→ Frame with integrated 185 ltr. fuel tank (Type 8015) and battery-cover
→ Galvanised towable Skid frame
→ Document box prepared for lock (26x15x8 cm)
→ PinoPumps standard stainless steel name plate with product name and serial number
DS2 D S150 - 3815 001
3815 001
REGISTER TO BUY
Please register to see prices and delivery times
Skid with tankframe and lifting hook assembled with Diesel engine and self-priming centrifugal pump Type Victor Pumps S150 (Q max: 300 m³/h; H max: 30 m) with following features:
→ Hatz Diesel engine
→ Close-coupled
→ Stage V (EU)
→ OPS (Pino Pumps overload-protection-system)
→ Electric start
→ Battery 80 Ah
→ Frame with integrated 185 ltr. fuel tank (Type 8015) and battery-cover
→ Galvanised towable Skid frame
→ Document box prepared for lock (26x15x8 cm)
→ PinoPumps standard stainless steel name plate with product name and serial number
3815 001
Specifications
Main Features |
|
|---|---|
| Pump Flow Rate | max 300 m³/h (5000 l/min) |
| Pump head | max 30 m |
| Max. Solids Handling | 72x50 mm |
| Self-priming | ★★★★☆ |
| Heavy-duty | ★★★★☆ |
| Frame | DS2 Skid with tankframe and lifting hook |
| Suitable for the EU sales area | Yes |
| Suitable for the US sales area | No |
| Suitable for non regulated sales areas | Yes |
Frame |
|
|---|---|
| Suitable for solid ground | Yes |
| Suitable for muddy and sandy terrains | Yes |
| Lifting hook | Yes |
| Can be moved by hand | No |
| Can be towed with a vehicle | Yes |
| Towing bar with hook | No |
| Document box prepared for lock | Yes |
| Tool box prepared for lock | No |
| Tank on engine | No |
| Tank integrated in frame | Yes |
| Tank Capacity | 185 l |
Pump |
|
|---|---|
| Type of Pump | Self-priming centrifugal pump |
| Pump manufacturer | Victor Pumps |
| Suction port | 6" |
| Discharge port | 6" |
| Type of ports | Counter flanges to weld |
| Type of self-priming | Wet-prime |
| Vaccum pump | No |
| Inspection cover for the impeller | Yes |
| Filling port | Yes |
| Drain Port | Yes |
| Plug for Vacumeter | Option |
| Plug for the Manometer | Option |
| Material of casing | Cast iron |
| Material of impeller | Ductile Cast-iron |
| Material of wear plate | Steel |
| Material of shaft | Stainless steel AISI420 |
| Material of non-return valve | NBR |
| Shaft sealing | WWN tungsten carbide tungsten carbide NBR |
Drive |
|
|---|---|
| Type of drive unit | Diesel |
| Drive Manufacturer | Hatz |
| Drive code | 2M41 |
| Exhaust gas regulation | Stage V |
| Manual Start | No |
| Electric start | Yes |
| No. of Cylinder | 2 |
| Strokes | 4-stroke |
| Displacement | 1716 cm³ |
| Rated Power | 18, 4 kW (25 HP) |
| OPS Engine Protection by Pino | Calibrated 18, 4 kW |
| Maximal Rotation | 2300 rpm |

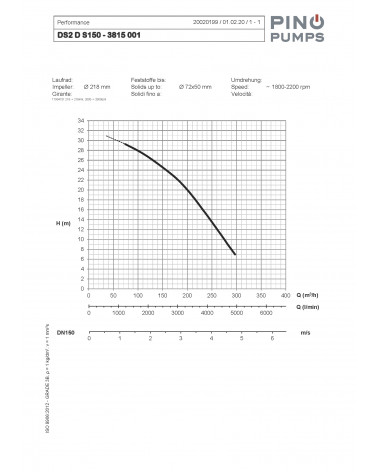

Performance data |
|
|---|---|
| Max vacuum with water | max 8 m (9, 5 m for 10 min) |
| Max vacuum with air | max 8, 5 m |
Additional Features |
|
|---|---|
| Battery Size | 80 Ah |
| Battery-cover | Yes |
| Switchboard | Yes |
| Indicators on the panel | Oil Pressure, Power-Battery Supply |
| Paint | RAL1006 maize yellow |

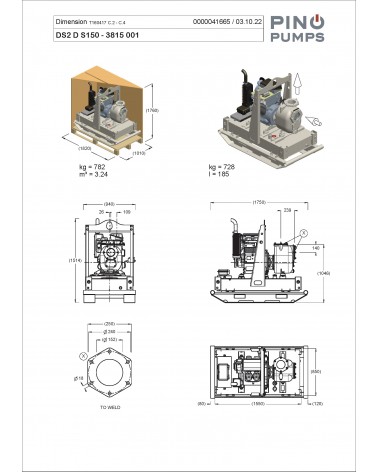

| External Dimensions (L x W x H) | 1750 x 940 x 1514 mm |
| Net Weight | 728 kg |
